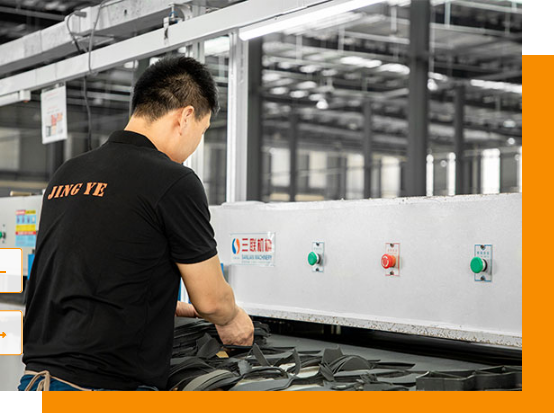

CUTTING Plant All raw materials are cut into the exact shape under quality control.

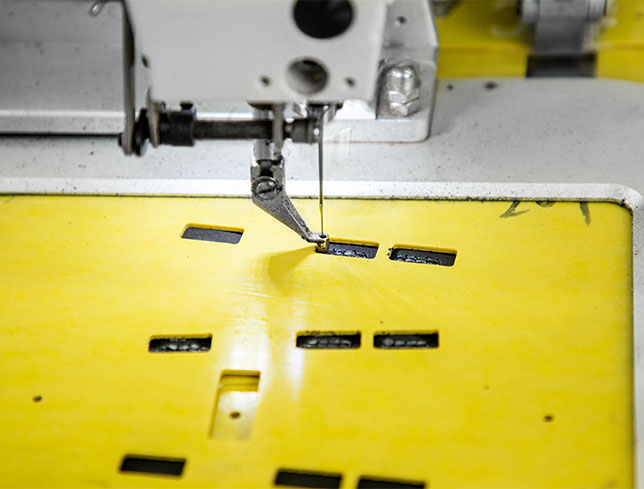

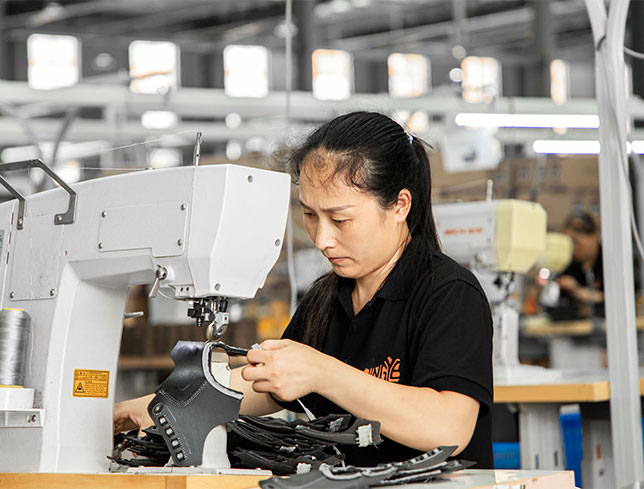

SEWING Plant Raw materials are sewn into shoe uppers with sewing machines for uniform quality.

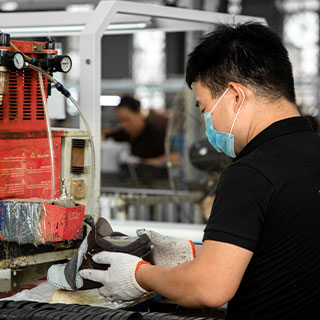

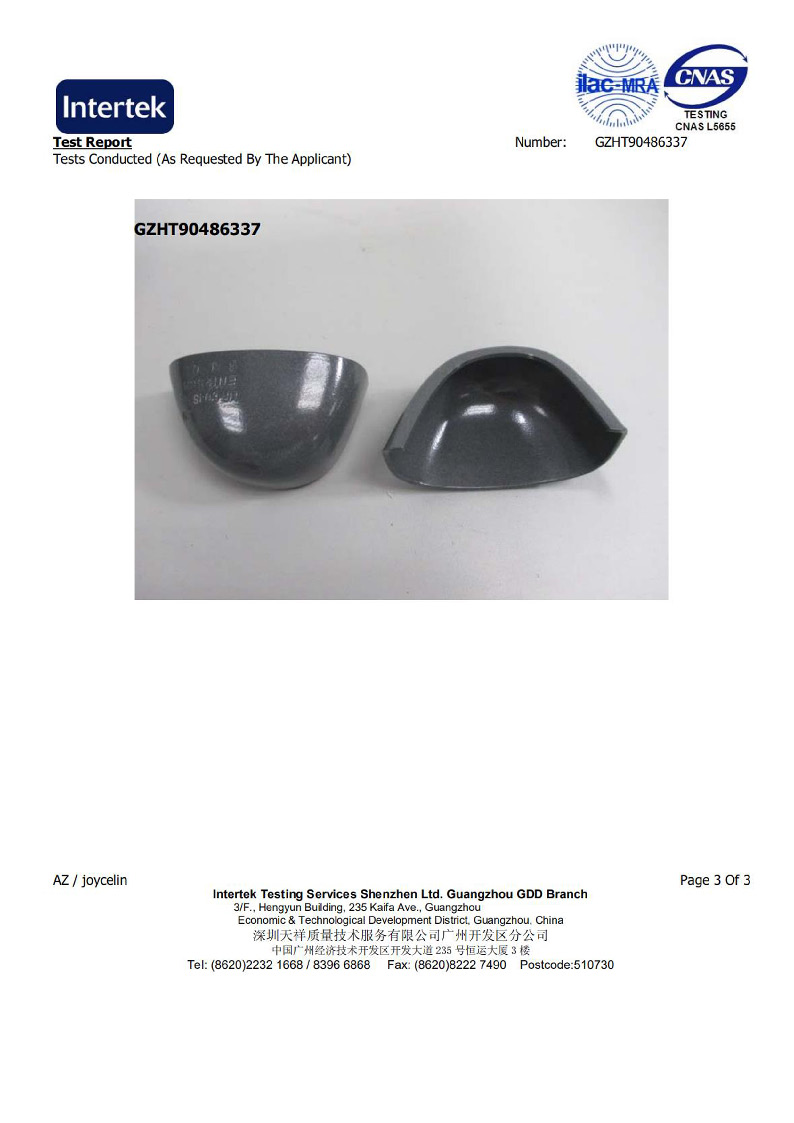

LASTING Plant A protective toe is inserted into the shoe upper to offer to protection.

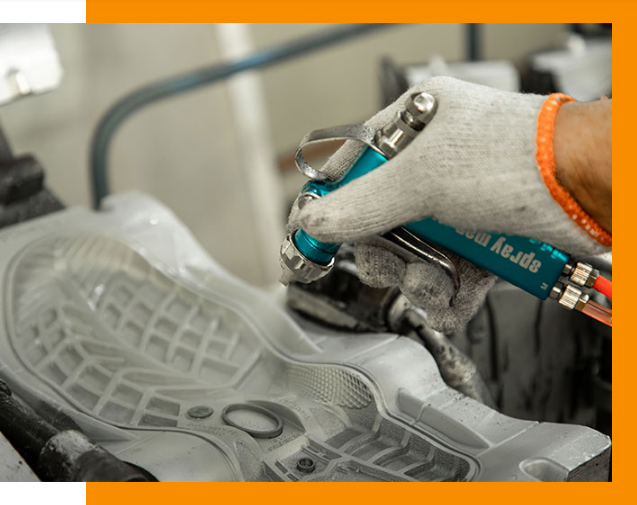

INJECTION Plant Double-density raw materials to from the shape of the sole for long life and comfort.

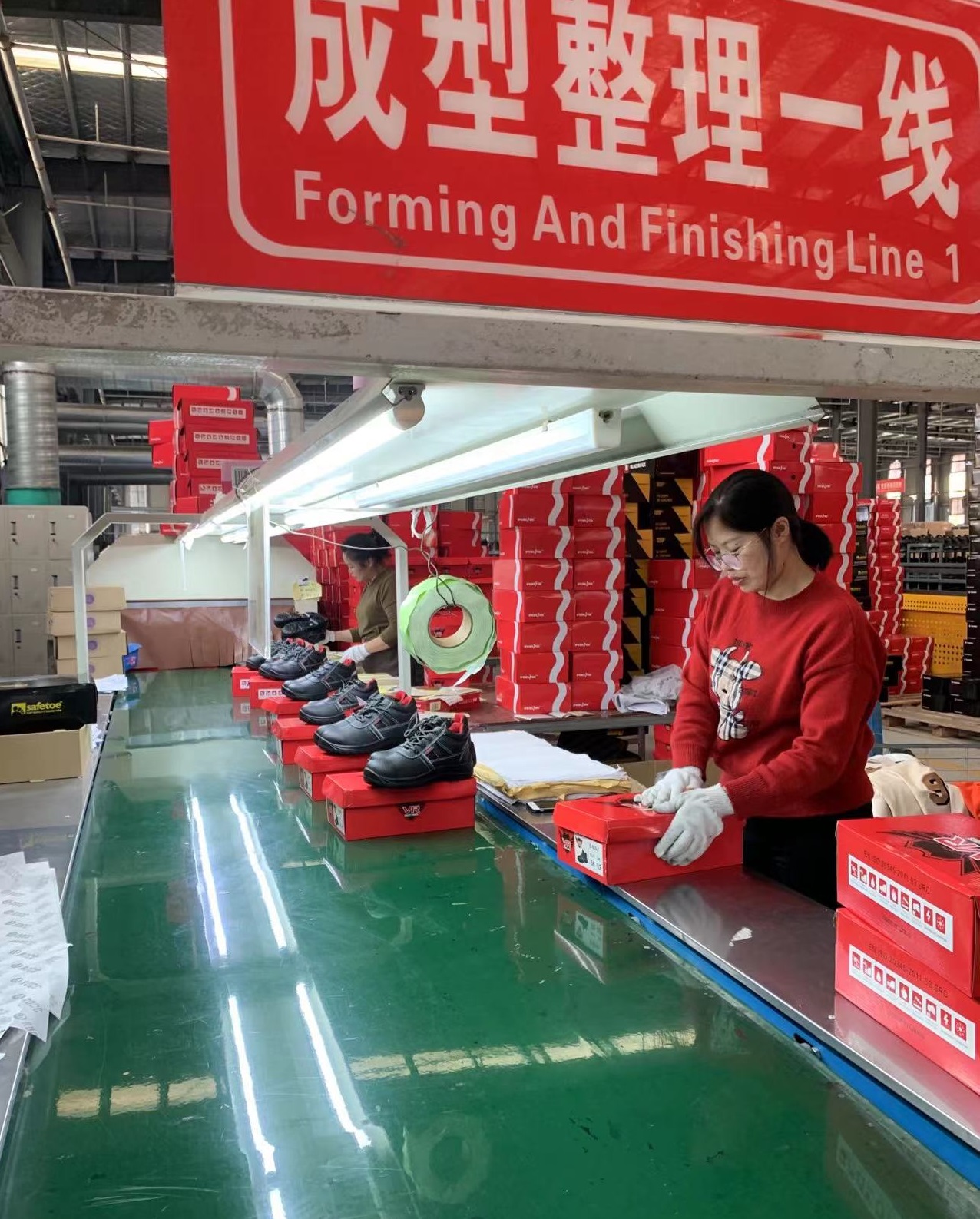

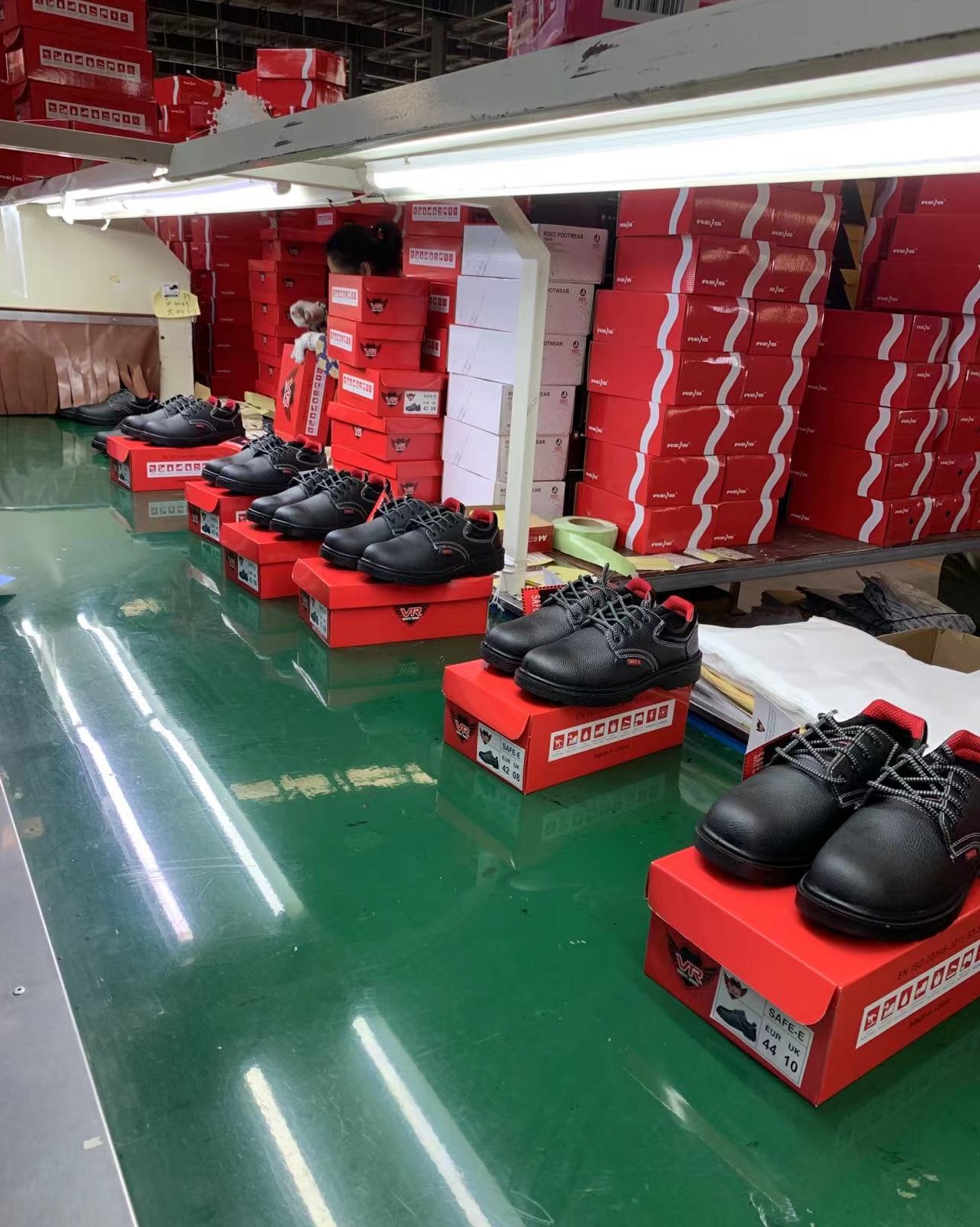

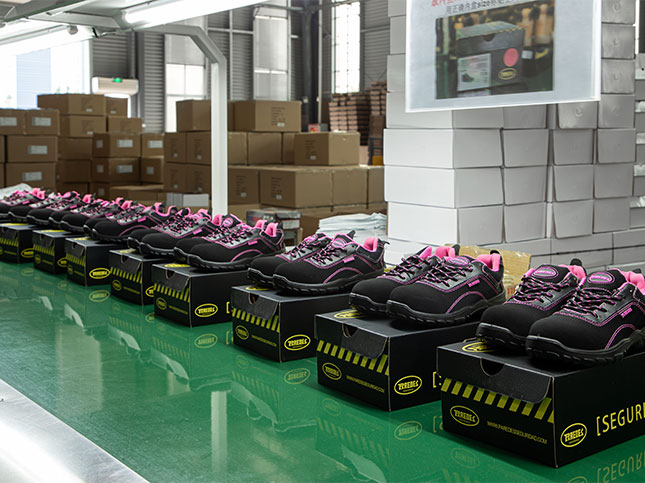

PACKING Plant Safety shoes of proven quility are package to ship around the world.

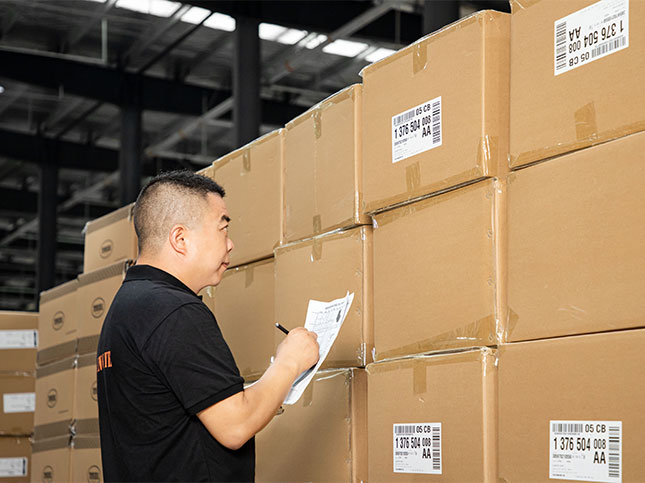

Warehousing & Loading
TESTING Lab Safety features of our shoes are tested in our testing lab according to international standards.
Anti static feature testing machine This machine is used to
determine footwear anti static resistance, which is measured
according to EN ISO 20344:2004,5.10, S1,S1P, S2, S3, S4, S5 all require this test.
lies above 100 kΩ
less than or equal to 1000 MΩ
Shoe flexing testing machine
This tester is used for determining the flexibility
resistance and or indicating the cracks of shoe or
shoe sole through reciprocating flexing movements
under the specified angle and frequency.
Bending angle：0-50° adjustable
Test speed：0~150cpm adjustable
Safety footwear impact testing machine
This equipment is mainly used for determination of impact resistance test safety shoes toes with a certain kinetic energy& a certain height. Test its subsidence degree.
Shoe dielectric resistance testing machine
This tester is used to determine the
isolation character of the shoe material.
By slowly increasing the voltage on the sole to the specified value, it checks if it can withstand that value in the prescribed time period.
Penetration resistance testing machine The purpose of the test is to determine the penetration resistance shall be not less than 1100n. Footwear component placed in the sole provides protection againts penetration.
Metalallic plate : Min. 1100N.
Non metallic plate : Zero penetration
Tensile strenght testing machine The purpose of
the test is to determine the tensile strenght & elongation characteristics of fabrics, synthetic leathers, genuine leathers, webbings, laces, and threds, plastic, rubbers, elastomers, midsole and outsole foams.
Requirement : Min. 15N/mm2.

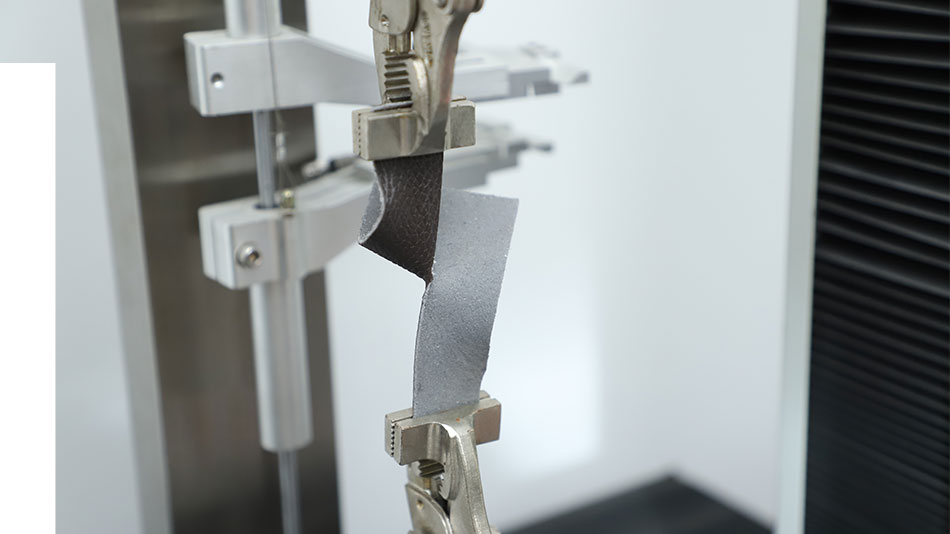

Tear strength testing machine The purpose of
the test is to determine the tearing strength of the materials according to the tear method. This test is good indicator of a material's resistance of the tearing.
Tear strength for leather upper : Min.120.0N
Tear stregth for coated fabric/textile upper Min.60.0N

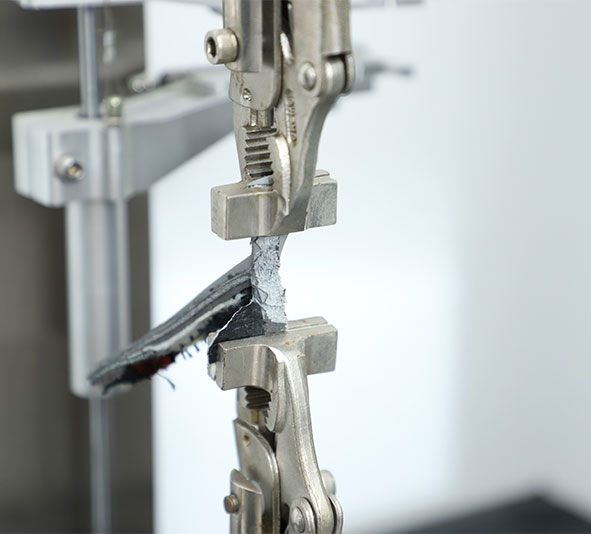

Upper & outsole bond strength tesing machine
The purpose of the test is to determine the interal tear strength between outsole and upper.
Bond strength shall be not less than 4,0 N/mm. unless there is tearing of the sole, in which case the bond strength shall be not less than 3,0 N/mm.

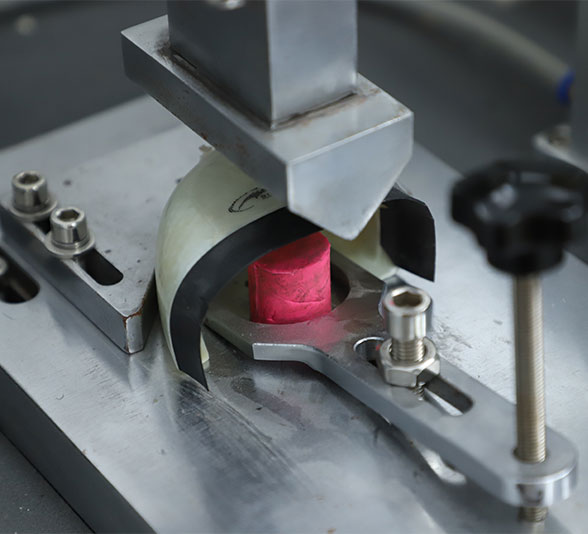

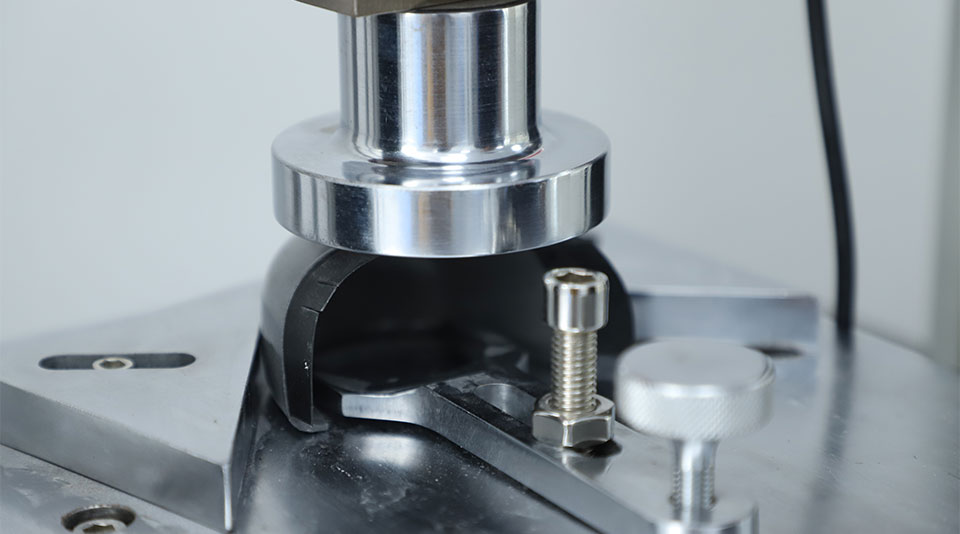

Compression testing machine
Safety footwear, incorporating protective features to protect the wearer from injuries which could arise through accidents.
It's designed to give protection aginst impact when tested at an energy level of at least 200J and against compression when tested at a compression load of at the least 15kN.
